The SPLOT program is a highly effective tool intended for simulating the HP-GL/2, HP-GL, HP-RTL, or DXY-GL plotters on the display of your PC. A partial support of the PCL language is also provided. The SPLOT program is the very thing you need to make your work with the plotter more effective. The SPLOT program will give you a guarantee you will always draw on your plotter what you really want. Moreover SPLOT program will allow you to convert plotter drawings to various other formats, so in many cases you will not need to draw them on plotter. That is why it will save your nerves, your time, your plotter, pens, ink and paper, that means your money.

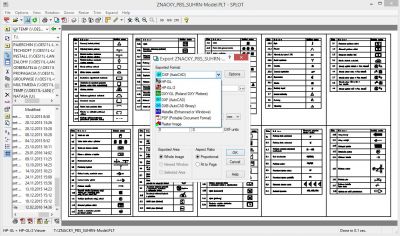

It also exports a PLT file to the PDF, TIFF, PNG, JPEG, BMP, WMP, HPGL, HPGL/2, DXY-GL, DXF, DXB and metafile formats.

Last modified on Friday, 12 February 2016 14:36

Additional Info

  • Features:


    • Comprehensive support of the HPGL/2 language.
    • Comprehensive support of the HP-RTL language.
    • Comprehensive support of the HPGL language (according to the type of simulated plotter).
    • Comprehensive support of the DXY-GL language (for ROLAND plotters).
    • Partial support of the PCL language.
    • Possibility of printing a picture to the printer in high quality. In this way the SPLOT program will make a fast and excellent plotter of any printer.
    • Exporting a picture to the PDF, TIFF, PNG, JPEG, BMP, WMP, HPGL, HPGL/2, DXY-GL, DXF, DXB and metafile formats.
    • Integrated PDF viewer and markup tool.
    • Directly send plot file(s) to a specified port, device or e-mail recipient.
    • Batch support for print, export and send functions (incl. Windows Shell integration).
    • Possibility of making picture cuts (the Trim function). In this way you can scan, draw on the plotter or print only the selected part of the picture.
    • Viewer with the Zoom and Pan functions.
    • Embedded File Explorer for quick, comfortable and instant access to the files, and with Favorites.
    • Fully integrated ZIP archives support (viewer, explorer, batch etc.).
    • Unique SPLOT archive format for easy and secure plot files sharing and dispatching.
    • Ruler.
    • Measurement.
    • Full Screen.
    • And much more.
  • Publisher: Alexandr Novy
  • Operating Systems: Windows (32 & 64 bit)
  • CAD Requirements: -
  • Other Requirements: -
  • License types: Trial/Commercial
  • Price: $ 73
